Toni System ZV red dot

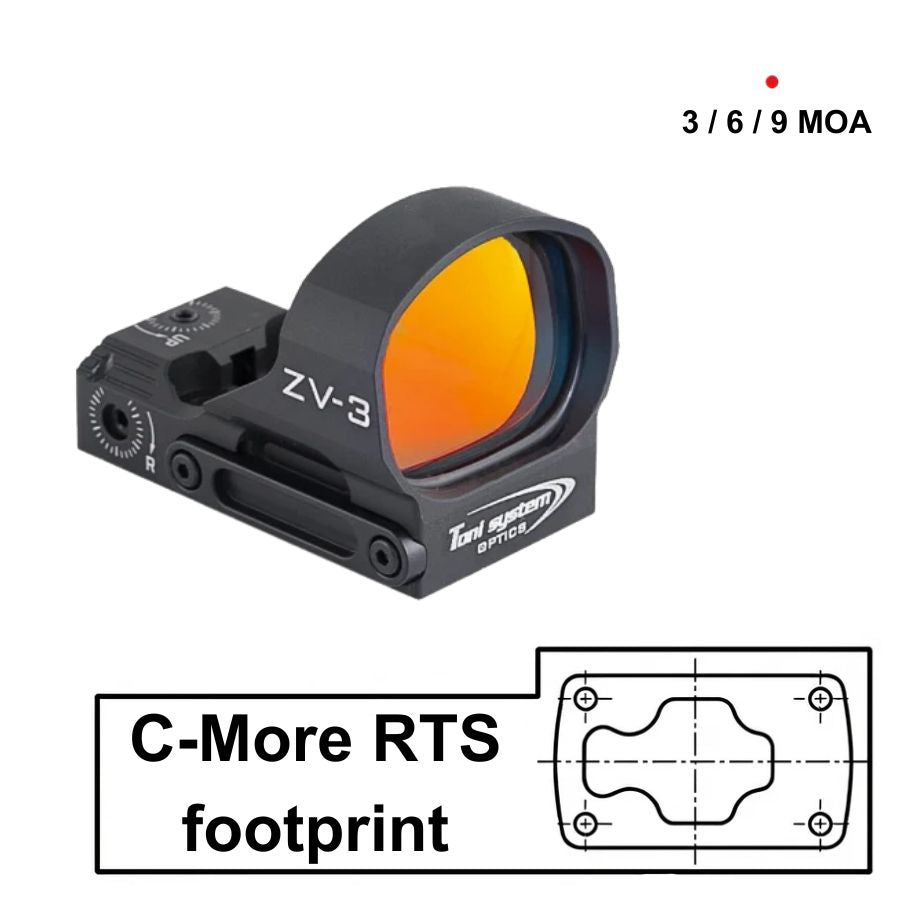

This red dot uses the C-More RTS footprint standard.

Made in Japan.

Balanced Speed. Confident Precision.

A tall 24.4 × 33.3 mm window and true 1× view let you run both eyes open for full awareness and quicker transitions.

You can choose between 3 MOA / 6 MOA / 9 MOA dot.

Built to Run Hard

The lightweight aluminum body and just 39.6 g (with battery) keep your setup nimble without sacrificing durability. Ten daylight-ready brightness settings make the dot stand out from dim indoor bays to bright midday sun.

Zero That Holds

Dial in precisely with 100 MOA of elevation and 70 MOA of windage. Set it once and focus on the next string—this optic is built to keep your point of impact where you put it.

Drop-In Compatibility

Uses the proven C-More footprint for straightforward mounting on compatible slides, plates, and mounts. Waterproof to 2 m and powered by a common CR2032 battery (included), it’s ready for real-world use right out of the box.

Key Specs

Dot size: 3/6/9 MOA
Dimensions: 51.0 × 36.3 × 35.4 mm
Lens window: 24.4 × 33.3 mm
Magnification: 1×
Elevation adjustment range: 100 MOA
Windage adjustment range: 70 MOA
Illumination settings: 10 positions
Waterproof rating: 2 m
Body material: Aluminum
Battery: CR2032 (included)
Footprint: C-More
Weight (with battery): 39.6 g
